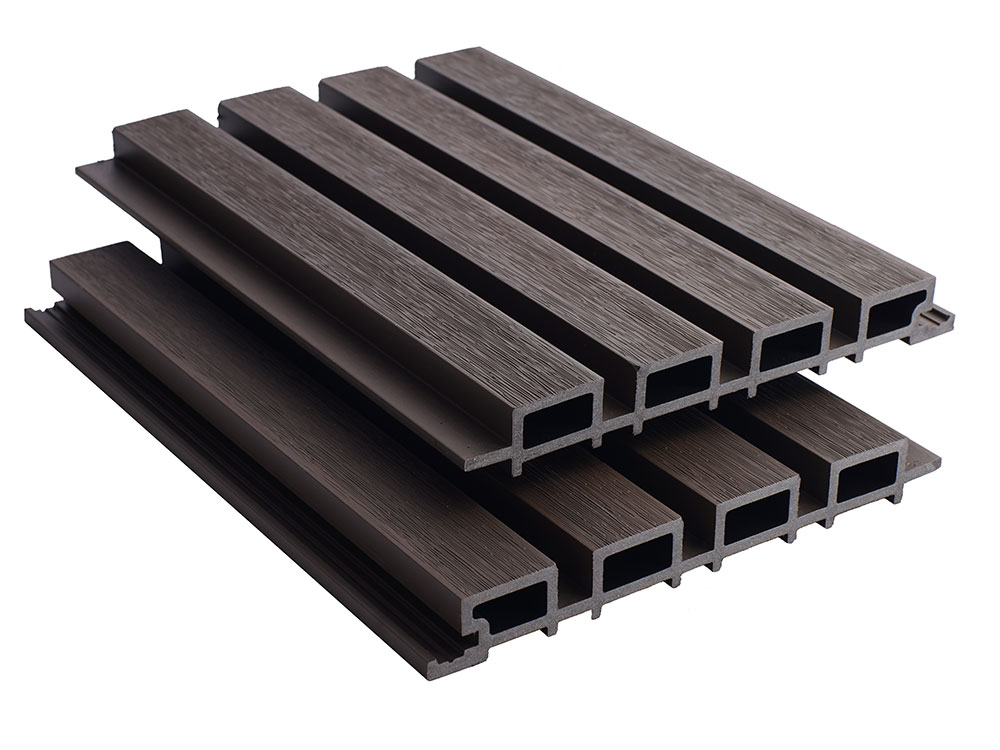

Hosung®- Co-Extrusion Cladding Walnut

HOSUNG®️ Superior Series

Co-extrusion Fluted Cladding

Capping material:

Engineered acrylic polymer

The outer polymer coating provides natural wood looking and highly improved water resistance as well as fade resistance for lasting durability.

360°full protection

Core material:

Wood ﬁber, high density polyethylene

The core materials are made of a great formulation of wood fiber and HDPE, giving the board enhanced resistance to any form of damage. Water, termite, and mold.

Rot-resistant

Maintenance-free

Termite-resistant

Deform-resistant

Long-lasting color

Easy to install

High Performance

Eco-Friendly

COLOR & TEXTURES

Dragon Texture

Tree Texture

Rain Texture

Dragon Texture

Tree Texture

Rain Texture

3 SERIES OF CLADDING COMPARISON

Product Testing

Waterproof

Stain Resistant,
Maintenance Free

Fire Resistant

Excellent UV Resistance

decking accessories&installation

Joist

End Cover

SS Screw

SS Starter Clip

SS Screw

SS Starter Clip

Install joists onto the wall with a 500mm span between adjacent joists. Secure the joists to the wall with screws at 500mm spans. Install two starter clips onto the bottommost joist.

Insert ist cladding panel into the bottom 2 starter clips. Then insert connector clips in line with the right side of the cladding at each cladding and joist junction place, and secure the cladding with the connector clip by screw.

Insert other panels until the remaining wall width is too narrow for a full panel. Measure the distance from the last panel to the comer and Cut the cladding panel. Put the trimmed cladding panel in place.

Insert one side of the cladding panel into the corner trim. Then, insert connector clips in line with the left side of the panel. Continue installing the clips and cladding in the same fashion. Measure the remaining wall width and cut a panel to fit it.

Insert a cladding on the other side of the corner. Continue installing cladding panels with connector clips. Measure the remaining wall width and cut a cladding panel to fit it. Then use screws to install the cladding panel onto the joists.

Take L trims and cover both sides at the beginning and the very end! Pre-drill holes in suitable positions, then fix the L trims with screws.

Install joists onto the wall with a 500mm span between adjacent joists. The lower end of the joists should be positioned 5mm above the ground, and then the starter clips should be installed into the joists at a position that is the same as the lower end of the joists.

Insert the first cladding panel into the starter clips and insert connector clips in line with the upper side of the wall panel. And screw them on the joists.

Repeat step 2 to fix more cladding panels.

After the last cladding panel is installed, put L trims on both sides of the cladding project and fix them to the cladding panels with screws. The installation is finished.

INSTALLATION PROJECI

Hosung®- Co-Extrusion Cladding Walnut

The outer polymer coating provides natural wood looking, and highly improved water resistance as well as fade resistance for lasting durability.

Color：

**Width*Thickness:**219mmx26mm

Standard Length：2.2m,2.9m,3.6m

Application： Balcony, Terrace, Veranda, Garden, Swimming pool Coffee shop, etc

Ingredient：55% wood fiber, 35% HDPE, 10% additives

Certificates：FSC, CE, CNAS, ISO 9001:2019, SGS

Factory Strength

Hosung@is a company which interpreted wpc production,selling, design, and product developing the company has advanced production technology,leading product development ability, a good reputation,management and technical service

200+

Customers

35000

m2

factory space

20000

tons

annual output

Quality Control

R&D Center

Extrusion Workshop

Warehouse

PRODUCTION PROCESS

We sell composite decking, fencing, and wall cladding worldwide; we are committed to selling excellent quality and amazingly priced composite wood products to every client and distributor.
