Hosung®- FW156Q21C Red Brown

HOSUNG®️ classic Series

3D Embossed WPC Cladding

3D Embossed:

art color &deeper grain

3D Embossed: art color &deeper grain with the features of deeper grain, greater durability and wear resistance, perfectly mimics wood grain, offering the best interpretation of natural wood. Inspired from natural real wood grain With embossing more than 1mm in depth, Up to 8 styles of wood grain for your choice.

360°full protection

Core material:

Wood ﬁber, high density polyethylene

The core materials are made of a great formulation of wood fiber and HDPE gives the board enhanced resistance to any form of damage. water, termite, and mold.

Rot-resistant

Maintenance-free

Termite-resistant

Deform-resistant

Long-lasting color

Easy to install

High Performance

Eco-Friendly

COLOR & TEXTURES

Teak

Grey

Oak

Charcoal

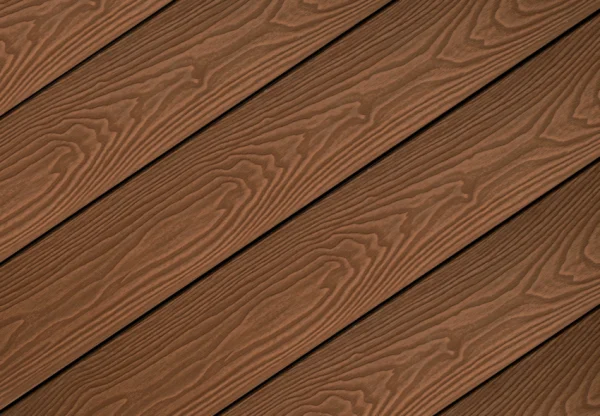

Red Brown

Chocolate

Dragon Texture

Peak Texture

Ancient Wood Texture

Willow Texture

Cloud Texture

Banyan Texture

Lucky Texture

Wave Texture

3 SERIES OF CLADDING COMPARISON

Product Testing

Waterproof

Stain Resistant,
Maintenance Free

Fire Resistant

Excellent UV Resistance

decking accessories&installation

Joist

End Cover

SS Screw

SS Starter Clip

Expansion Screw

Before installing the wall panel，please confirm the wall is smooth and strong enough.Plan the layout of the cladding panels,Measure the dimensions of the wall and calculate the number of panels needed to cover the entire surface area.

Attach the joists vertically along the bottom edge of the wall. Nail the expansion screw to make it stable enough. Notice: Staggered installation needs two pieces of fists on the joint of the two panels.

Fix the start clip, use electric drilling to pre-drill, and fix it with a stainless steel screw. Install all the start clips on the bottom in the same way. Notice: The screws must be stainless steel screws.

Install the first piece of the wall panel and fix it with stainless steel screws. Continue as above instruction: put wall panels on,pre-drill, and fix stainless steel screws one by one to finish the whole wall installation.

When the window is encountered during installation, I will put a small piece of wood between the joist and the wall panel. Pre-drill and fix with stainless steel screws, then continue installing the wall panel.

Gelatinize the wall panel around the window frame with styrofoam and fix it with stainless steel screws. Install the L corner, and cut the end of the two corners at the angle of 45°.

Continue installing wpc cladding row by row until the entire wall surface is covered. Trim the last row of panels to fit. Install trim at the corner

INSTALLATION PROJECI

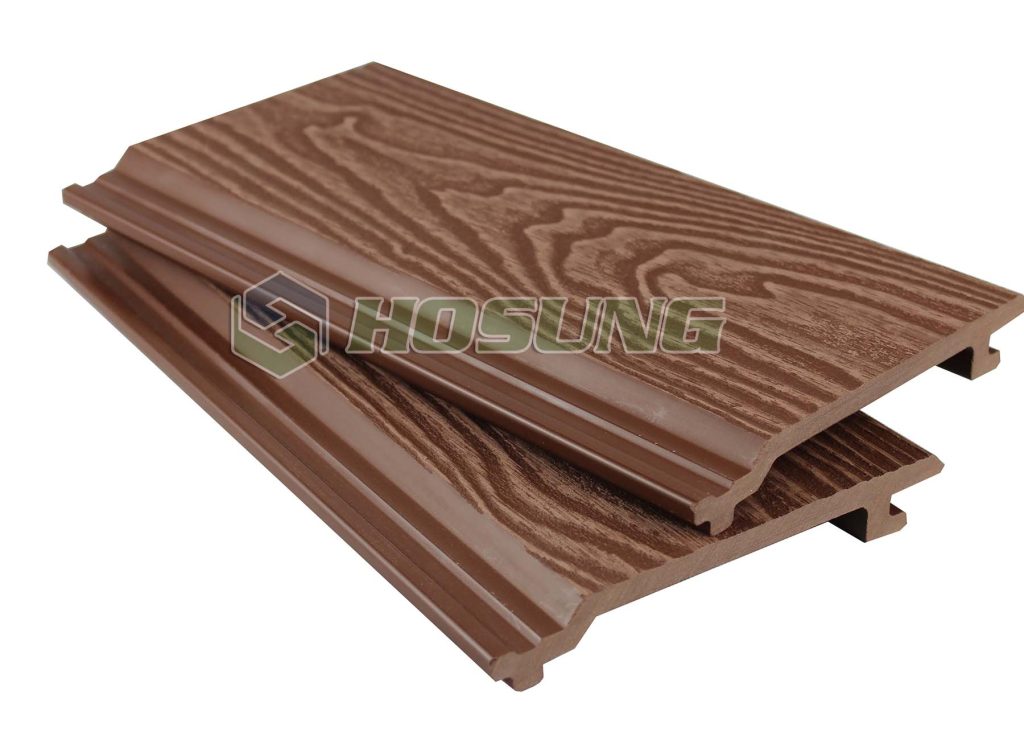

Hosung®- FW156Q21C Red Brown

The outer polymer coating provides natural wood looking, and highly improved water resistance as well as fade resistance for lasting durability.

Color：

**Width*Thickness:**156mmx21mm

Standard Length：2.2m,2.9m,3.6m

Application： Balcony, Terrace, Veranda, Garden, Swimming pool Coffee shop, etc

Ingredient：55% wood fiber, 35% HDPE, 10% additives

Certificates：FSC, CE, CNAS, ISO 9001:2019, SGS
